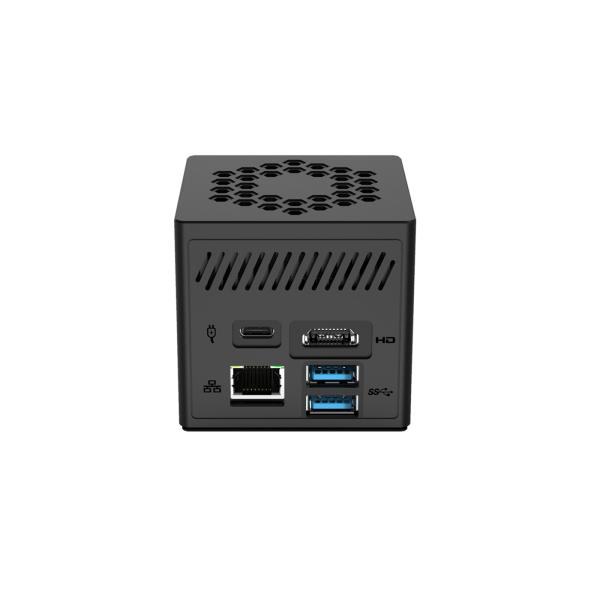

Intel Celeron Mini PC Intel Gemini lake J4125 CPU 128 SSD
Lower Power consumption:
Support All Gemini lake CPU, include the 10W TDP processor
Intel Gemini lake Processor: TPD 6W
- Celeron: N4020 (Dual core, 1.1GHz~2.8GHz)
- Celeron: N4120 (Quad core, 1.1GHz~2.6GHz)
- Intel® Pentium Silver Processor: N5000(Quad core, 1.1GHz~2.7GHz)
Intel® Gemini lake Processor: TPD 10W
- Celeron: J4125 (Quad core, 2.0GHz~2.7GHz)
- Intel Pentium Silver Processor: J5005 (Quad core, 1.5GHz~2.8GHz)
Application of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
- Industrial control cabinet
- Human Machine Interface
- Welding industry
- CNC machinery control
- Numerical control device
- Video Analysis
- Other industrial automation etc
- Hospital and Shcool
a: Support All Gemini lake CPU, include the 10W TDP processor
Intel Gemini lake Processor: TPD 6W
- Celeron: N4020 (Dual core, 1.1GHz~2.8GHz)
- Celeron: N4120 (Quad core, 1.1GHz~2.6GHz)
- Intel® Pentium Silver Processor: N5000(Quad core, 1.1GHz~2.7GHz)
Intel® Gemini lake Processor: TPD 10W
- Celeron: J4125 (Quad core, 2.0GHz~2.7GHz)
- Intel Pentium Silver Processor: J5005 (Quad core, 1.5GHz~2.8GHz)
b: mini cube AC6M dimension is 63x63x58mm
c: small size but with all I/O port that nessory for daily use: USB3.0 x 2, Gigabit LAN x 1, Audio, HDMI x 1
d: low voice fan built-in, with big heatsink
e: Dual band wifi for internet.
f: Elegant design for a mini PC with plam size
Advantages of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
1. High reliability, continuous production, and decreasing failure rate.
2. Intel® Quad Core with Frequency of 2.0-2.7GHz.
3. Support hardware reset.
4. Work well in the industrial environment.
6. Be able to work with industrial cameras.
Rich I/O ports of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD
Include: 1 * HDMI; 2 * USB; 3.01 * LAN(gigabit); 1 * Type-C(power
Mechanical of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V2.0A
Miscellaneous
Supported OS: Windows 10 Home/Pro/11/Linux
Accessories of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
1 x AC adapter
1 x User manual
1 x HDMI cable
OEM Service:
Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.
Specifications of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
| Type | Descriptions |
| PROCESSOR | Intel® Gemini lake Processor: TPD 6W | Intel® Gemini lake Processor: TPD 10W |
Celeron: N4020 (Dual core, 1.1GHz~2.8GHz)
Celeron: N4100 (Quad core, 1.1GHz~2.4GHz)
Celeron: N4120 (Quad core, 1.1GHz~2.6GHz)
Intel® Pentium Silver Processor: N5000(Quad core, 1.1GHz~2.7GHz)
| Celeron: J4125 (Quad core, 2.0GHz~2.7GHz)
Intel® Pentium Silver Processor: J5005 (Quad core, 1.5GHz~2.8GHz) |
| GPU | UHD Graphics 600--Celeron CPU
UHD Graphics 605--Pentium CPU |
| MEMORY | 4GB/ 8GB DDR4(Onboard) |
| STORAGE INTERFACE | supports 1xM.2 2242 SSD;
1x Micro SD |
| ETHERNET | WiF ac/g/b/n + Gigabit LAN |
| AUDIO | 3.5mm audio output |
| BACK I/O | 1 * HDMI
2 * USB3.0
1 * Type-C for power
1* RJ45 |
| SIDE I/O |
1 * kenston slot
1 * Micro SD
1 * 3.5mm Earphone port |
| POWER | Input:100- 240V AC
Output: 12V2.0A DC |
| ACCESSORIES |
Quick User Guide
Adapter
Power cord |
| SIZE | Chassis:63*63*58mm |
| CHASSIS | Plastic |
| OS SUPPORT | Win 11/Linux |
