About this item
- 【The newest Intel Jasper Lake and User Friendly Design】
Newsmay mini pc equips with the newest Intel Jasper Lake, which gives you the fastest and smoothest enjoyment, and is ideal for playing Plex Media Server, business and education. It also is User Friendly Design. The portable compact computer size and minimalist appearance, make your life away from chaos. Our whole machine is electricity cost saving.
- 【Intel® UHD Graphics 600 & 4K HDMI】
Newsmay AC6-M Desktop PC Mini uses Intel® UHD Graphics support 4K HD video playback, it brings you a first-class visual shock. one display output (HDMI) can connect one monitor.
- 【External and Internal Storage Expansion Options】
The Newsmay AC6-M mini computers can be equipped with 8GB on-board DDR4 internal Memory.The 512GB M.2 SATA SSD. Multitask working can be performed smoothly, and all your necessary software applications can be be accommodated in this small machine!
- 【More interfaces designed & Licensed Windows 11 Pre-installed】
Mini Desktop PC Newsmay AC6-M includes 2xUSB 3.0, 1xHDMI, 1xAudio Jack (HP&MIC), 1x micro SD slot, 1xGigabit Ethernet LAN (RJ-45 port), 1xDC Jack. This mini desktop computer supports Windows 11 and Linux OS, if necessary, you can install Ubuntu OS for programming development, building server, and learning database.
- 【Free And Reliable Lifetime after-sales Service】
Newsmay AC6-M has been dedicating to R&D Mini PC for many years. All Newsmay Mini-PC have passed strict inspections before shipping. If you have any questions, please don’t hesitate to contact Us.We offer lifetime technical support, a 1-Year-free warranty, and 24/7 after-sales service. All of our products obtained FCC, RoHS, CE Certifications.
Rich I/O ports of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD
Include: 1 * HDMI; 2 * USB; 3.01 * LAN(gigabit); 1 * Type-C(power
Mechanical of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V2.0A
Miscellaneous
Supported OS: Windows 10 Home/Pro/11/Linux
Accessories of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
1 x AC adapter
1 x User manual
1 x HDMI cable
OEM Service:
Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.
Specifications of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
| Type | Descriptions |
| PROCESSOR | Intel® Gemini lake Processor: TPD 6W | Intel® Gemini lake Processor: TPD 10W |
Celeron: N4020 (Dual core, 1.1GHz~2.8GHz)
Celeron: N4100 (Quad core, 1.1GHz~2.4GHz)
Celeron: N4120 (Quad core, 1.1GHz~2.6GHz)
Intel® Pentium Silver Processor: N5000(Quad core, 1.1GHz~2.7GHz)
| Celeron: J4125 (Quad core, 2.0GHz~2.7GHz)
Intel® Pentium Silver Processor: J5005 (Quad core, 1.5GHz~2.8GHz) |
| GPU | UHD Graphics 600--Celeron CPU
UHD Graphics 605--Pentium CPU |
| MEMORY | 4GB/ 8GB DDR4(Onboard) |
| STORAGE INTERFACE | supports 1xM.2 2242 SSD;
1x Micro SD |
| ETHERNET | WiF ac/g/b/n + Gigabit LAN |
| AUDIO | 3.5mm audio output |
| BACK I/O | 1 * HDMI
2 * USB3.0
1 * Type-C for power
1* RJ45 |
| SIDE I/O |
1 * kenston slot
1 * Micro SD
1 * 3.5mm Earphone port |
| POWER | Input:100- 240V AC
Output: 12V2.0A DC |
| ACCESSORIES |
Quick User Guide
Adapter
Power cord |
| SIZE | Chassis:63*63*58mm |
| CHASSIS | Plastic |
| OS SUPPORT | Win 11/Linux |
Product Tags:
|
|

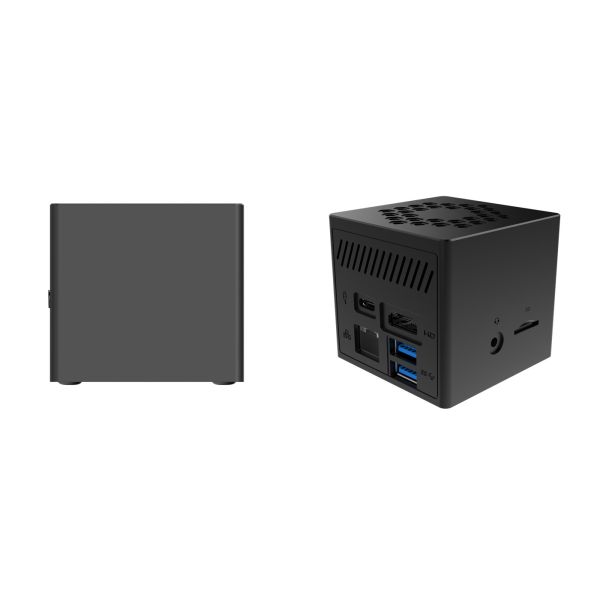

N4020 J4125 CPU Intel Celeron Mini PC LPDDR4 8GB Pocket Size HDMI 2xUSB3.0 Images
|
